一、路由器刷入openwrt系统

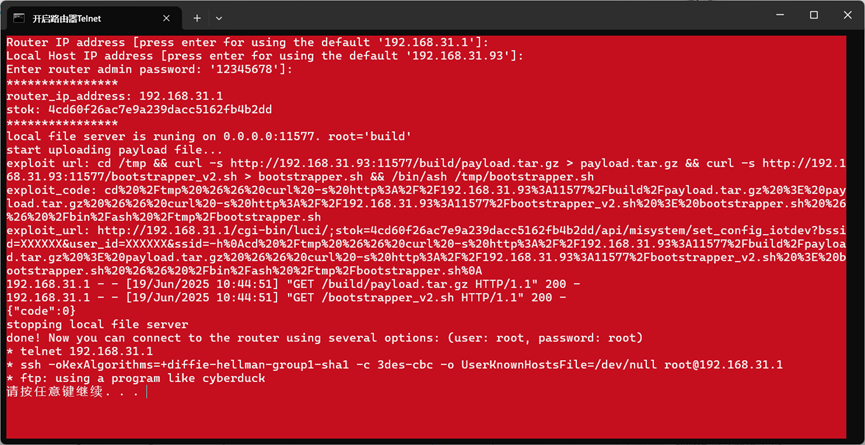

1.开Telnet

双击运行 1.V2版开Telnet.bat程序

第一个为路由器ip
第二个为当前设备的ip
密码为路由器管理员密码

2.连接路由器，备份固件

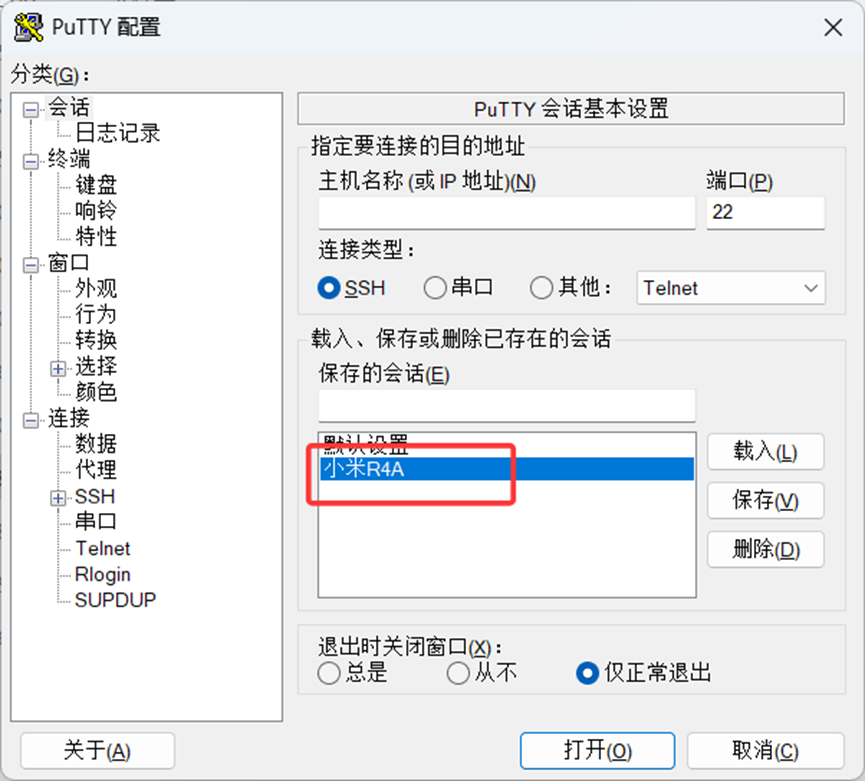

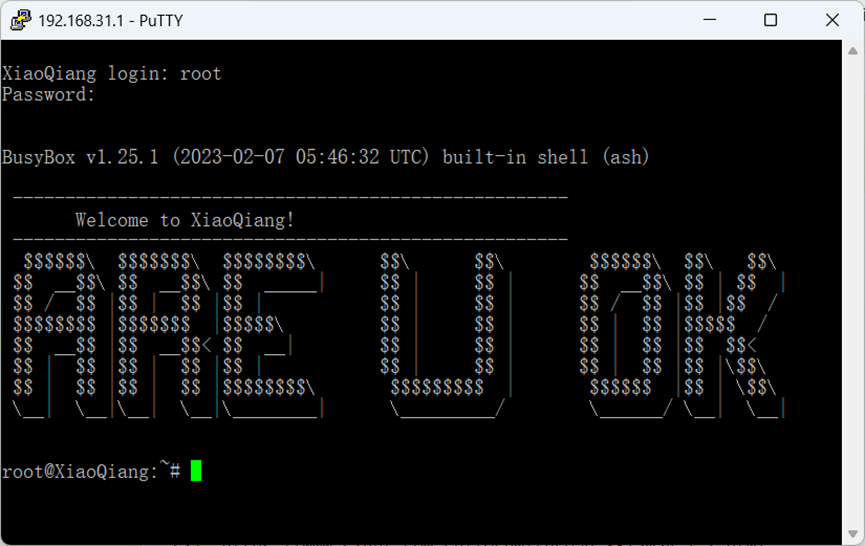

直接打开刷机工具包里的putty工具
双击R4A进入即可

账户密码均为root

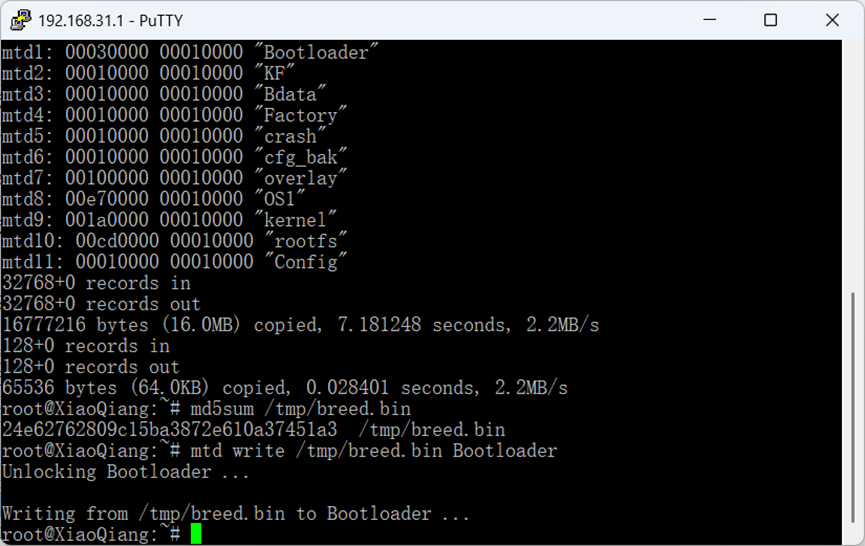

备份编程器固件

cat /proc/mtd&&dd if=/dev/mtd0 of=/tmp/ALL_backup.bin&&dd if=/dev/mtd4 of=/tmp/eeprom.bin

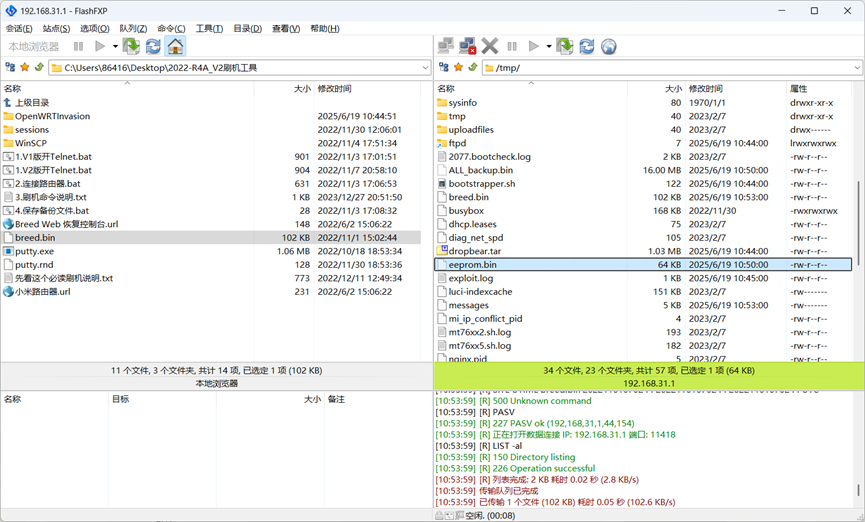

使用FlashFXP 下载备份固件
保存tmp目录里的 ALL_backup.bin 和 eeprom.bin 到电脑.
同时将breed.bin上传到tmp目录

3.刷入breed

验证breed.bin的MD5数值

md5sum /tmp/breed.bin

MD5值应当为 24e62762809c15ba3872e610a37451a3

使用命令

mtd write /tmp/breed.bin Bootloader

刷入breed固件

使用命令 reboot 重启
路由器重启完成后浏览器192.168.1.1进入管理界面

4.刷入openwrt

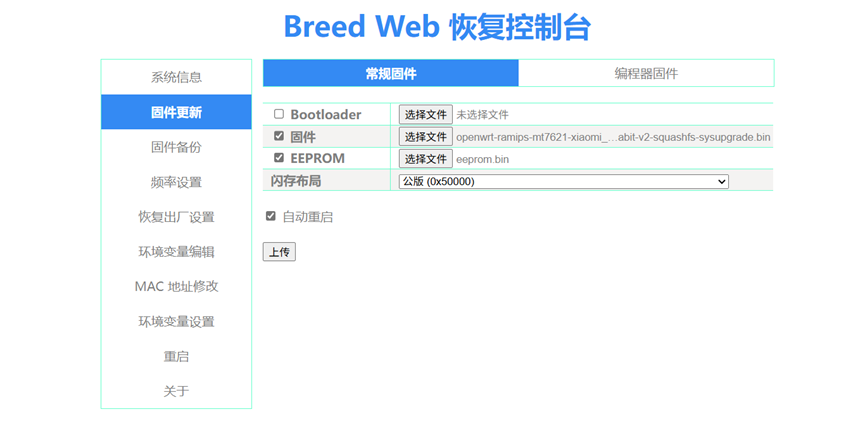

点击 固件更新-常规固件

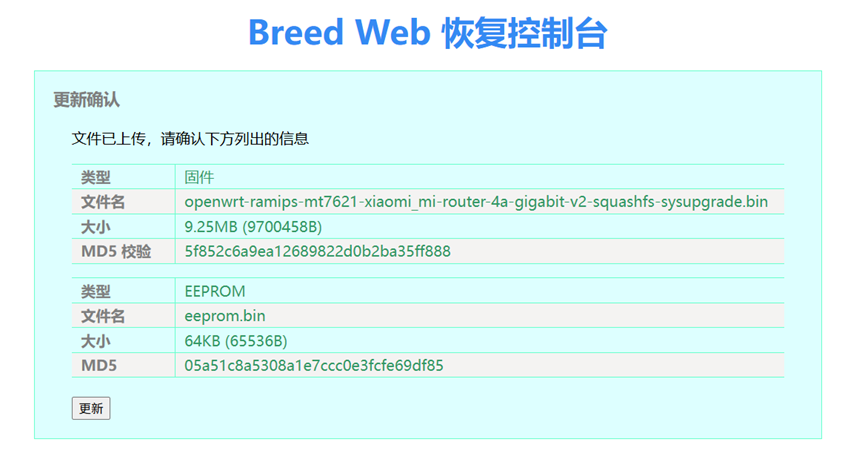

选择好固件(.bin文件)和EEPROM(之前备份的eeprom.bin) 点击上传即可

确认一遍是否正确点击更新

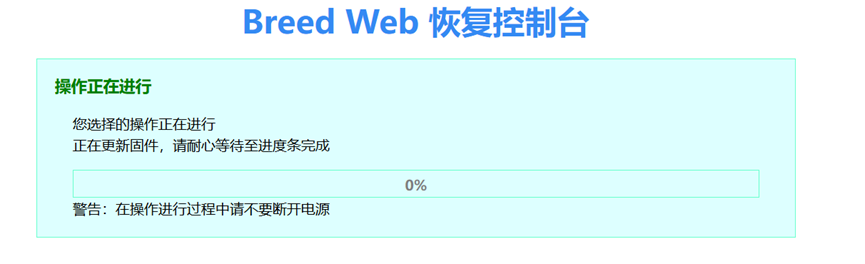

进度条跑完即可等待路由器重启啦！

如果路由器一直闪黄灯进入安全模式，可以拔掉电源硬重启一次

5.进入系统

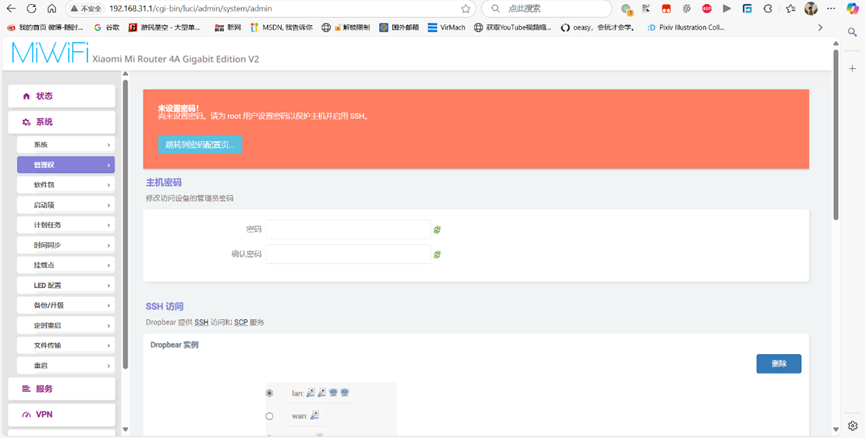

192.168.31.1进入openwrt管理界面

二、无网线接口配置方法

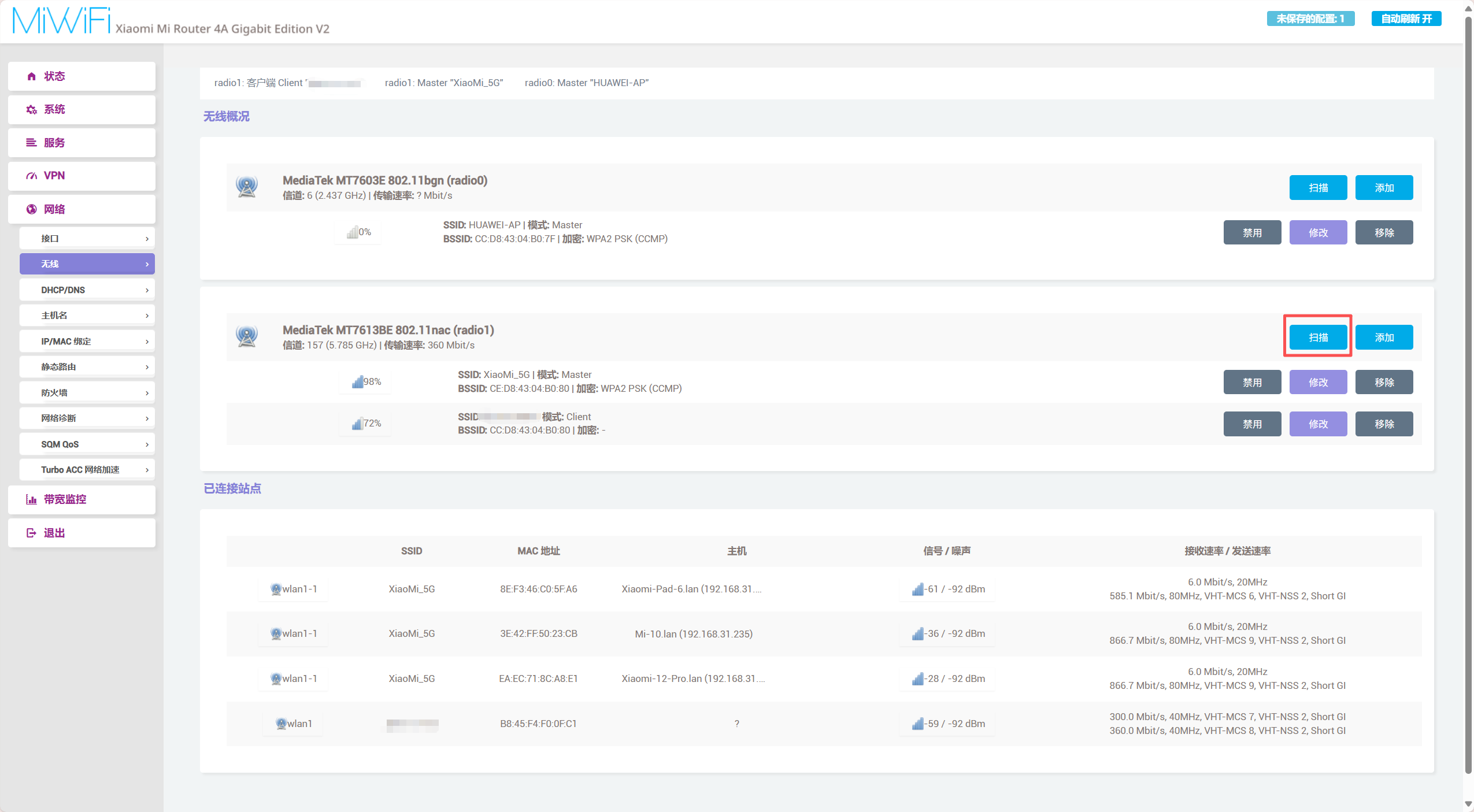

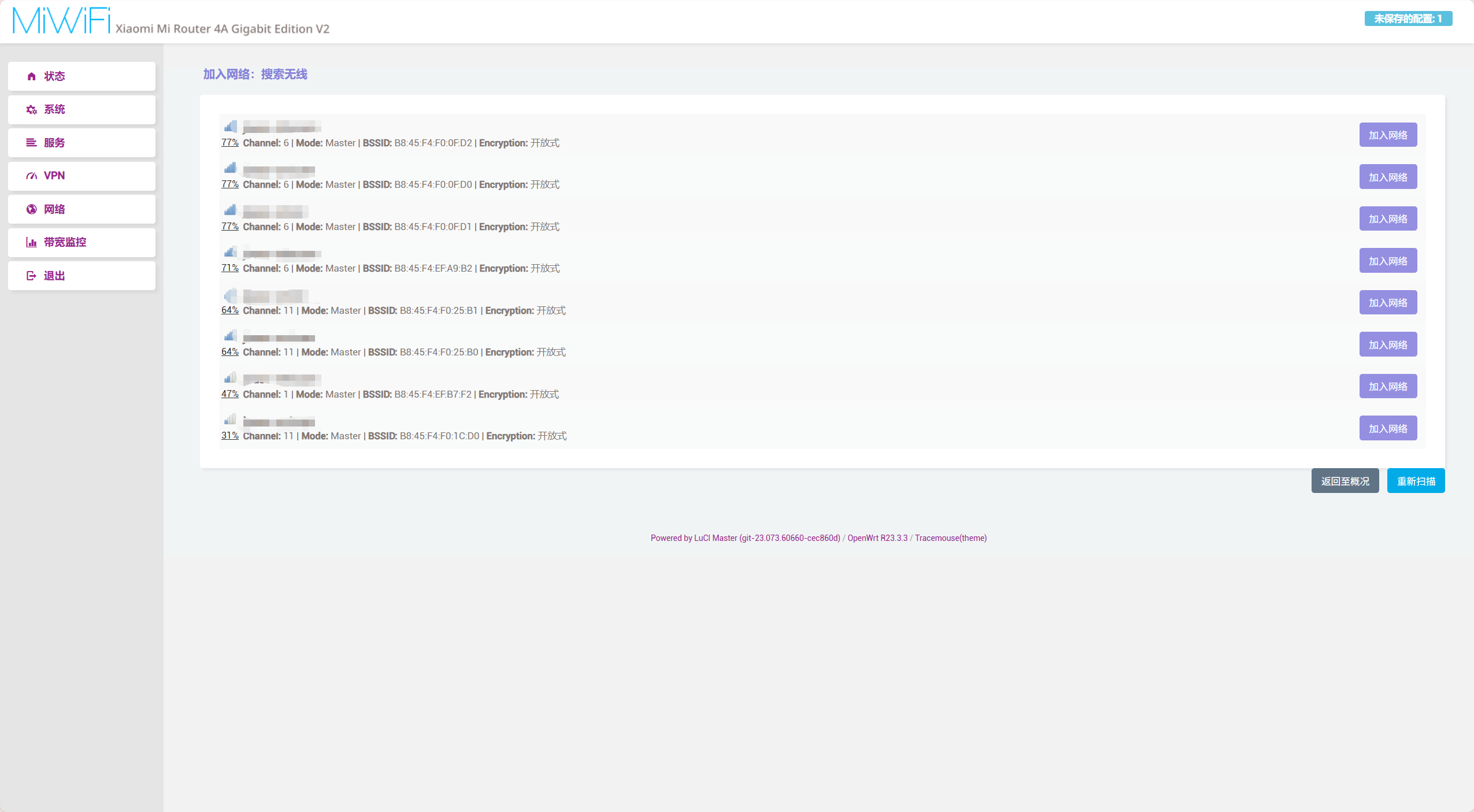

网络->无线->扫描

选择需要连接的网络

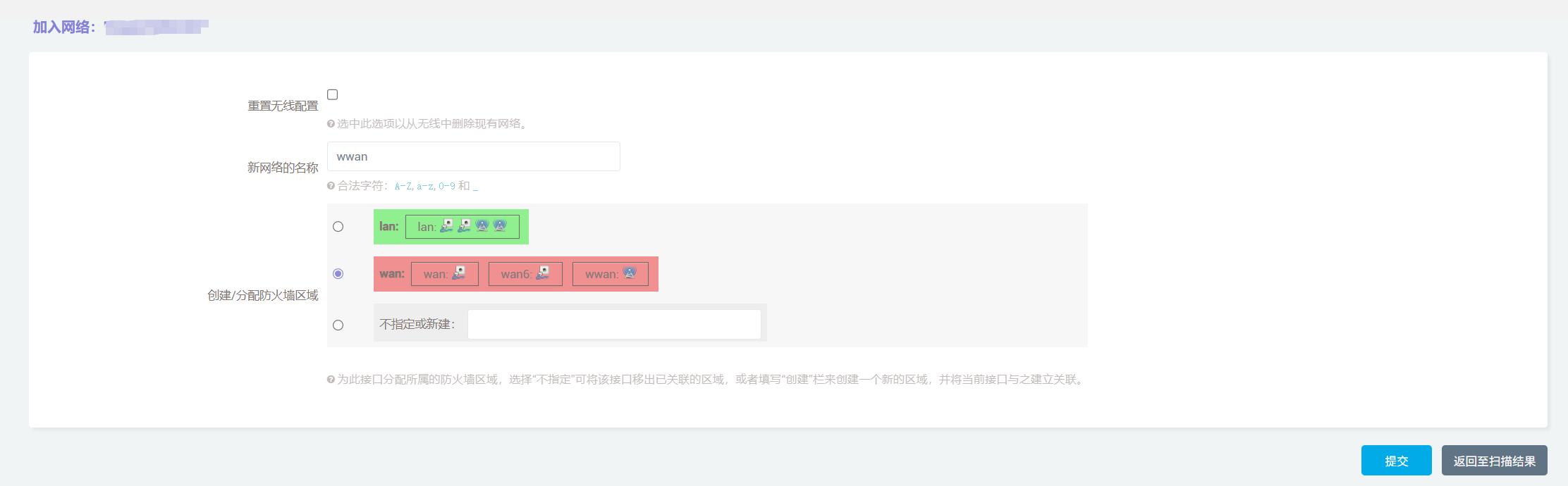

默认提交

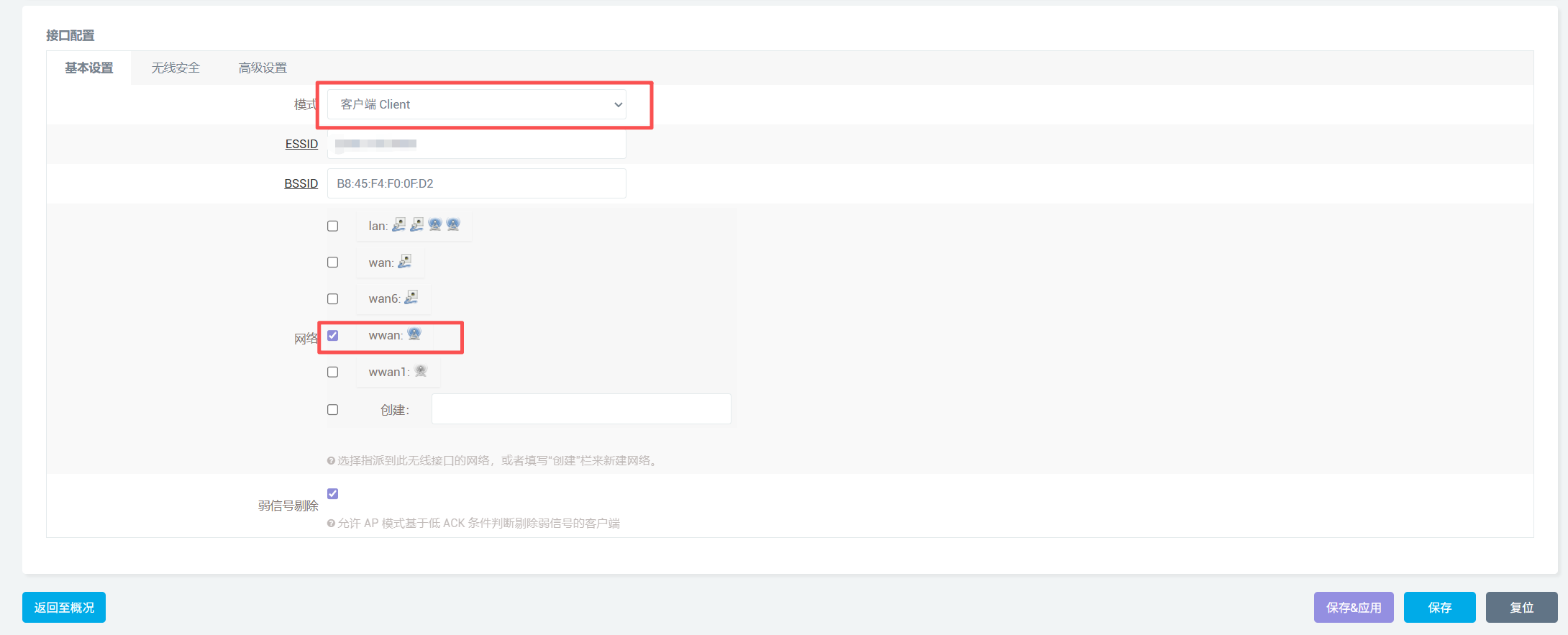

确认为客户端模式，且网络接口为之前创建的

三、获取认证接口构建认证请求

通过抓包测试，可知登录注销等接口

1.登录接口

http://210.28.39.251:801/eportal/?user_account=<用户名>&wlan_user_ip=<当前设备IP>&login_method=1&user_password=<密码>&c=Portal&a=login
Host: 210.28.39.251:801
Connection: keep-alive
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0
Referer: http://210.28.39.251/
Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6

2.注销接口

http://210.28.39.251:801/eportal/?c=Portal&a=logout&ac_logout=0&register_mode=1&wlan_user_ip=<当前设备IP>&user_account=drcom
Host: 210.28.39.251:801
Connection: keep-alive
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0
Accept: */*
Referer: http://210.28.39.251/
Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6

3.构造认证请求文件

根据个人需求编写auto_login.sh脚本

{collapse-item label="auto_login.sh" open}

#!/bin/sh

# 校园网认证脚本
# 首先获取当前WAN口IP，然后使用该IP进行认证

# 设置日志文件路径
LOG_FILE="/tmp/auto_login.log"

# 获取WWAN接口的IP地址
# 假设你的无线客户端接口是wwan（根据第一步配置）
CURRENT_IP=$(ifconfig wwan 2>/dev/null | awk '/inet addr/{print substr($2,6)}')
USERNAME=""
PASSWORD=""

# 如果没有获取到IP，尝试使用其他方法
if [ -z "$CURRENT_IP" ]; then
   CURRENT_IP=$(ubus call network.interface.wwan status 2>/dev/null | jsonfilter -e '@["ipv4-address"][0].address')
fi

# 如果仍然没有IP，记录错误并退出
if [ -z "$CURRENT_IP" ]; then
   echo "[$(date +'%Y-%m-%d %H:%M:%S')] 错误: 无法获取WAN口IP地址" >> $LOG_FILE
   exit 1
fi

echo "[$(date +'%Y-%m-%d %H:%M:%S')] 获取到IP: $CURRENT_IP" >> $LOG_FILE

# 构造认证URL
AUTH_URL="http://210.28.39.251:801/eportal/?user_account=${USERNAME}&wlan_user_ip=${CURRENT_IP}&login_method=1&user_password=${PASSWORD}&c=Portal&a=login"

# 发送第一次认证请求
echo "[$(date +'%Y-%m-%d %H:%M:%S')] 发送第一次认证请求..." >> $LOG_FILE
RESPONSE=$(curl -s -X GET \
 "$AUTH_URL" \
 -H "Host: 210.28.39.251:801" \
 -H "Connection: keep-alive" \
 -H "User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0" \
 -H "Referer: http://210.28.39.251/" \
 -H "Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6")

# 记录第一次响应
echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第一次认证响应: $RESPONSE" >> $LOG_FILE

# 解析第一次响应结果
if echo "$RESPONSE" | grep -q '"result":"1"'; then
   echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第一次认证成功" >> $LOG_FILE
   exit 0
elif echo "$RESPONSE" | grep -q '"result":"0"'; then
   if echo "$RESPONSE" | grep -q '"ret_code":2'; then
       echo "[$(date +'%Y-%m-%d %H:%M:%S')] 已经在线，无需重复认证" >> $LOG_FILE
       exit 0
   else
       echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第一次认证失败，等待2秒后重试..." >> $LOG_FILE
       sleep 2

       # 发送第二次认证请求
       echo "[$(date +'%Y-%m-%d %H:%M:%S')] 发送第二次认证请求..." >> $LOG_FILE
       RESPONSE=$(curl -s -X GET \
         "$AUTH_URL" \
         -H "Host: 210.28.39.251:801" \
         -H "Connection: keep-alive" \
         -H "User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0" \
         -H "Referer: http://210.28.39.251/" \
         -H "Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6")

       # 记录第二次响应
       echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证响应: $RESPONSE" >> $LOG_FILE

       # 解析第二次响应结果
       if echo "$RESPONSE" | grep -q '"result":"1"'; then
           echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证成功" >> $LOG_FILE
           exit 0
       elif echo "$RESPONSE" | grep -q '"result":"0"' && echo "$RESPONSE" | grep -q '"ret_code":2'; then
           echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次尝试时已经在线" >> $LOG_FILE
           exit 0
       else
           echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证失败: $RESPONSE" >> $LOG_FILE
           exit 1
       fi
   fi
else
   echo "[$(date +'%Y-%m-%d %H:%M:%S')] 未知响应，等待2秒后重试..." >> $LOG_FILE
   sleep 2

   # 发送第二次认证请求
   echo "[$(date +'%Y-%m-%d %H:%M:%S')] 发送第二次认证请求..." >> $LOG_FILE
   RESPONSE=$(curl -s -X GET \
     "$AUTH_URL" \
     -H "Host: 210.28.39.251:801" \
     -H "Connection: keep-alive" \
     -H "User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0" \
     -H "Referer: http://210.28.39.251/" \
     -H "Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6")

   # 记录第二次响应
   echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证响应: $RESPONSE" >> $LOG_FILE

   # 解析第二次响应结果
   if echo "$RESPONSE" | grep -q '"result":"1"'; then
       echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证成功" >> $LOG_FILE
       exit 0
   elif echo "$RESPONSE" | grep -q '"result":"0"' && echo "$RESPONSE" | grep -q '"ret_code":2'; then
       echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次尝试时已经在线" >> $LOG_FILE
       exit 0
   else
       echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证失败: $RESPONSE" >> $LOG_FILE
       exit 1
   fi
fi

{/collapse-item}
{collapse-item label="9月11更新auto_login.sh"}

#!/bin/sh

# 校园网认证脚本
# 首先获取当前WAN口IP，然后使用该IP进行认证

# 设置日志文件路径
LOG_FILE="/tmp/auto_login.log"

# 获取WWAN接口的IP地址
# 假设你的无线客户端接口是wwan（根据第一步配置）
CURRENT_IP=$(ifconfig wwan 2>/dev/null | awk '/inet addr/{print substr($2,6)}')
USERNAME=""
PASSWORD=""

# 如果没有获取到IP，尝试使用其他方法
if [ -z "$CURRENT_IP" ]; then
    CURRENT_IP=$(ubus call network.interface.wwan status 2>/dev/null | jsonfilter -e '@["ipv4-address"][0].address')
fi

# 如果仍然没有IP，记录错误并退出
if [ -z "$CURRENT_IP" ]; then
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 错误: 无法获取WAN口IP地址" >> $LOG_FILE
    exit 1
fi

echo "[$(date +'%Y-%m-%d %H:%M:%S')] 获取到IP: $CURRENT_IP" >> $LOG_FILE

# 构造认证URL
AUTH_URL="http://210.28.39.251:801/eportal/?user_account=${USERNAME}&wlan_user_ip=${CURRENT_IP}&login_method=1&user_password=${PASSWORD}&c=Portal&a=login"

# 发送第一次认证请求
echo "[$(date +'%Y-%m-%d %H:%M:%S')] 发送第一次认证请求..." >> $LOG_FILE
RESPONSE=$(curl -s -X GET \
  "$AUTH_URL" \
  -H "Host: 210.28.39.251:801" \
  -H "Connection: keep-alive" \
  -H "User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0" \
  -H "Referer: http://210.28.39.251/" \
  -H "Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6")

# 记录第一次响应
echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第一次认证响应: $RESPONSE" >> $LOG_FILE

# 解析第一次响应结果
if echo "$RESPONSE" | grep -q '"result":"1"'; then
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第一次认证成功" >> $LOG_FILE
    exit 0
elif echo "$RESPONSE" | grep -q '"result":"0"'; then
    if echo "$RESPONSE" | grep -q '"ret_code":2'; then
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 已经在线，无需重复认证" >> $LOG_FILE
        exit 0
    else
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第一次认证失败，等待5秒后重试..." >> $LOG_FILE
        sleep 5

        # 发送第二次认证请求
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 发送第二次认证请求..." >> $LOG_FILE
        RESPONSE=$(curl -s -X GET \
          "$AUTH_URL" \
          -H "Host: 210.28.39.251:801" \
          -H "Connection: keep-alive" \
          -H "User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0" \
          -H "Referer: http://210.28.39.251/" \
          -H "Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6")

        # 记录第二次响应
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证响应: $RESPONSE" >> $LOG_FILE

        # 解析第二次响应结果
        if echo "$RESPONSE" | grep -q '"result":"1"'; then
            echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证成功" >> $LOG_FILE
            exit 0
        elif echo "$RESPONSE" | grep -q '"result":"0"' && echo "$RESPONSE" | grep -q '"ret_code":2'; then
            echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次尝试时已经在线" >> $LOG_FILE
            exit 0
        else
            echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证失败: $RESPONSE；当前IP为：$CURRENT_IP" >> $LOG_FILE
            exit 1
        fi
    fi
else
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 未知响应，等待5秒后重试...；当前IP为：$CURRENT_IP；URL为：$AUTH_URL" >> $LOG_FILE
    sleep 5

    # 发送第二次认证请求
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 发送第二次认证请求..." >> $LOG_FILE
    RESPONSE=$(curl -s -X GET \
      "$AUTH_URL" \
      -H "Host: 210.28.39.251:801" \
      -H "Connection: keep-alive" \
      -H "User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0" \
      -H "Referer: http://210.28.39.251/" \
      -H "Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6")

    # 记录第二次响应
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证响应: $RESPONSE" >> $LOG_FILE

    # 解析第二次响应结果
    if echo "$RESPONSE" | grep -q '"result":"1"'; then
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证成功" >> $LOG_FILE
        exit 0
    elif echo "$RESPONSE" | grep -q '"result":"0"' && echo "$RESPONSE" | grep -q '"ret_code":2'; then
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次尝试时已经在线" >> $LOG_FILE
        exit 0
    else
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第二次认证失败: $RESPONSE；当前IP为：$CURRENT_IP" >> $LOG_FILE
        exit 1
    fi
fi

{/collapse-item}

{collapse-item label="9月14更新auto_login.sh
IP地址变化导致，构建的URL不正确，更新每次认证前，重新获取一次IP"}

#!/bin/sh

# 校园网认证脚本
# 首先获取当前WAN口IP，然后使用该IP进行认证

USER_ACCOUNT=""
USER_PASSWORD=""
AUTH_SERVER=""

# HTTP请求头部定义
HOST_HEADER=""
REFERER_HEADER=""
USER_AGENT="Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/139.0.0.0 Safari/537.36 Edg/139.0.0.0"
CONNECTION="keep-alive"
ACCEPT_LANGUAGE="zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6"

# 设置日志文件路径
LOG_FILE="/tmp/auto_login.log"

# 函数：获取当前WWAN接口的IP地址
get_current_ip() {
    # 尝试多种方法获取IP地址
    local ip=$(ifconfig wwan 2>/dev/null | awk '/inet addr/{print substr($2,6)}')

    # 如果没有获取到IP，尝试使用其他方法
    if [ -z "$ip" ]; then
        ip=$(ubus call network.interface.wwan status 2>/dev/null | jsonfilter -e '@["ipv4-address"][0].address')
    fi

    # 如果依然获取不到，尝试使用ip命令
    if [ -z "$ip" ]; then
        ip=$(ip -4 addr show dev wwan 2>/dev/null | grep -oE 'inet [0-9.]+' | cut -d' ' -f2)
    fi

    # 如果仍然没有IP，记录错误
    if [ -z "$ip" ]; then
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 错误: 无法获取WAN口IP地址" >> $LOG_FILE
        echo "" # 返回空字符串
    else
        echo "$ip"
    fi
}

# 函数：发送认证请求
send_auth_request() {
    local ip=$1
    local attempt=$2
    local auth_url="http://${AUTH_SERVER}/eportal/?user_account=${USER_ACCOUNT}&wlan_user_ip=${ip}&login_method=1&user_password=${USER_PASSWORD}&c=Portal&a=login"

    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 发送第${attempt}次认证请求..." >> $LOG_FILE
    # echo "[$(date +'%Y-%m-%d %H:%M:%S')] 认证URL: $auth_url" >> $LOG_FILE

    RESPONSE=$(curl -s -X GET \
      "$auth_url" \
      -H "Host: $HOST_HEADER" \
      -H "Connection: $CONNECTION" \
      -H "User-Agent: $USER_AGENT" \
      -H "Referer: $REFERER_HEADER" \
      -H "Accept-Language: $ACCEPT_LANGUAGE")

    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第${attempt}次认证响应: $RESPONSE" >> $LOG_FILE

    # 解析响应结果
    if echo "$RESPONSE" | grep -q '"result":"1"'; then
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第${attempt}次认证成功" >> $LOG_FILE
        return 0
    elif echo "$RESPONSE" | grep -q '"result":"0"' && echo "$RESPONSE" | grep -q '"ret_code":2'; then
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第${attempt}次尝试时已经在线，无需重复认证" >> $LOG_FILE
        return 0
    else
        echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第${attempt}次认证失败；响应：$RESPONSE；认证URL：$auth_url" >> $LOG_FILE
        return 1
    fi
}


# 获取当前IP
CURRENT_IP=$(get_current_ip)

if [ -z "$CURRENT_IP" ]; then
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 错误: 无法获取WAN口IP地址，退出脚本" >> $LOG_FILE
    exit 1
fi

echo "[$(date +'%Y-%m-%d %H:%M:%S')] 获取到IP: $CURRENT_IP" >> $LOG_FILE

# 第一次认证尝试
if send_auth_request "$CURRENT_IP" "一"; then
    exit 0
fi

# 第一次尝试失败，等待5秒后重试
echo "[$(date +'%Y-%m-%d %H:%M:%S')] 第一次认证失败，等待5秒后重试..." >> $LOG_FILE
sleep 5

# 第二次尝试前重新获取IP
NEW_IP=$(get_current_ip)
if [ -z "$NEW_IP" ]; then
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 错误: 重试时无法获取WAN口IP地址，退出脚本" >> $LOG_FILE
    exit 1
fi

# 检查IP是否变化
if [ "$NEW_IP" != "$CURRENT_IP" ]; then
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 检测到IP地址变化：${CURRENT_IP} -> ${NEW_IP}" >> $LOG_FILE
    CURRENT_IP="$NEW_IP"
fi

# 第二次认证尝试
if send_auth_request "$CURRENT_IP" "二"; then
    exit 0
else
    echo "[$(date +'%Y-%m-%d %H:%M:%S')] 认证最终失败; 当前IP为: $CURRENT_IP" >> $LOG_FILE
    exit 1
fi

{/collapse-item}

4.上传到路由器

使用putty软件连接到路由器

后面使用vim进行操作

1.创建auto_login.sh文件

vi /etc/auto_login.sh

2.在vi编辑器下，按 i 进入编辑模式，按 Shift+Insert 将准备好的脚本粘贴上去，然后按 esc 退出编辑模式，然后输入 :wq 并回车即可保存。
若输入错误，在退出编辑模式后，输入 :q! 不保存退出，如何再重新打开编辑
若要全部删除：按 esc 键后，先按 gg （到达顶部），然后 dG 即可。

3.设置权限

chmod +x /etc/auto_login.sh

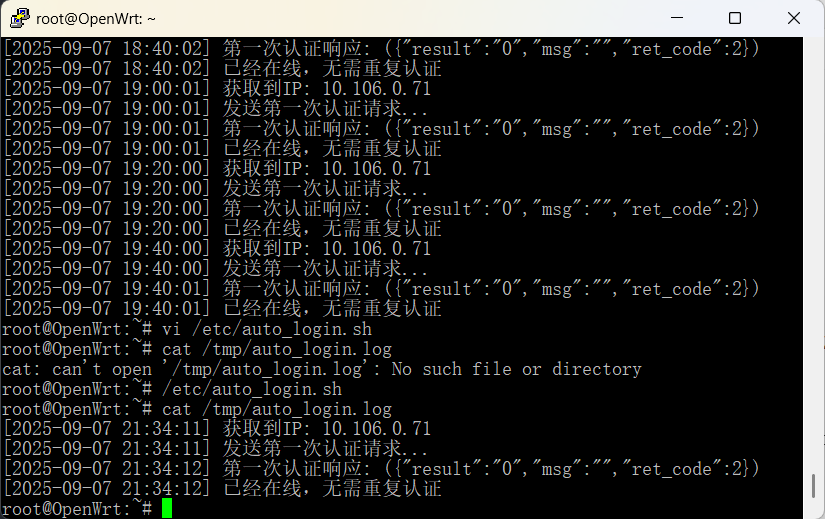

4.手动运行一次测试一下

/etc/auto_login.sh

5.查看日志记录

cat /tmp/auto_login.log

6.设置计划任务每30分钟运行一次

*/30 * * * * /etc/auto_login.sh

5.IP监测

1.创建 check_ip_change.sh 文件

vi /etc/check_ip_change.sh

{collapse-item label="check_ip_change.sh 文件" open}

#!/bin/sh

# 接口名称
INTERFACE="wwan"
# 用于存储上次IP的文件
IP_FILE="/tmp/last_ip_${INTERFACE}.txt"
# 日志文件
LOG_FILE="/tmp/auto_login.log"
# 循环次数
LOOP_COUNT=29
# 循环间隔(秒)
LOOP_INTERVAL=60

# 获取当前IP地址
get_current_ip() {
    # 尝试多种方法获取IP地址
    local ip=""

    ip=$(ifconfig ${INTERFACE} 2>/dev/null | awk '/inet addr/{print substr($2,6)}')

    # 如果没有获取到IP，尝试使用其他方法
    if [ -z "$ip" ]; then
        ip=$(ubus call network.interface.${INTERFACE} status 2>/dev/null | jsonfilter -e '@["ipv4-address"][0].address')
    fi

    # 如果依然获取不到，尝试使用ip命令
    if [ -z "$ip" ]; then
        ip=$(ip -4 addr show dev ${INTERFACE} 2>/dev/null | grep -oE 'inet [0-9.]+' | cut -d' ' -f2)
    fi

    echo "$ip"
}

# 记录日志函数
log() {
    echo "$(date '+%Y-%m-%d %H:%M:%S') check_ip_change.sh-> $1" >> ${LOG_FILE}
    # logger -t ip-change-detector "$1"
}

# 主循环函数
main_loop() {
    for i in $(seq 1 $LOOP_COUNT); do
        # log "循环第 $i/$LOOP_COUNT 次"

        # 获取当前IP
        current_ip=$(get_current_ip)

        # 如果无法获取当前IP，记录错误但继续循环
        if [ -z "${current_ip}" ]; then
            log "警告: 无法获取接口 ${INTERFACE} 的IP地址"
            sleep $LOOP_INTERVAL
            continue
        fi

        # log "当前检测到IP: ${current_ip}"

        # 检查是否存在存储的上次IP
        if [ -f "${IP_FILE}" ]; then
            last_ip=$(cat ${IP_FILE})
            log "上次记录的IP: ${last_ip}"

            # 比较IP是否变化
            if [ "${current_ip}" != "${last_ip}" ]; then
                log "检测到IP变化，当前检测到IP: ${current_ip},上次记录的IP: ${last_ip},执行认证脚本..."

                # 执行认证脚本
                if [ -x "/etc/auto_login.sh" ]; then
                    /etc/auto_login.sh >> ${LOG_FILE} 2>&1
                    auth_result=$?

                    if [ ${auth_result} -eq 0 ]; then
                        log "认证脚本执行成功"
                    else
                        log "认证脚本执行失败，返回码: ${auth_result}"
                    fi
                else
                    log "错误: 认证脚本 /etc/auto_login.sh 不存在或不可执行"
                fi

                # 更新存储的IP
                echo "${current_ip}" > ${IP_FILE}
                log "已更新存储的IP为: ${current_ip}"
            fi
        else
            # 首次运行，创建IP记录文件
            echo "${current_ip}" > ${IP_FILE}
            log "首次运行，记录IP: ${current_ip}"
        fi

        # 等待下一次循环
        if [ $i -lt $LOOP_COUNT ]; then
            sleep $LOOP_INTERVAL
        fi
    done
}

# 执行主循环
main_loop

log "完成 ${LOOP_COUNT} 次循环检测，脚本退出"

{/collapse-item}

2.设置权限

chmod +x /etc/check_ip_change.sh

3.设置计划任务每分钟运行一次

* * * * * /etc/check_ip_change.sh
# 丢弃所有输出 不保留任何日志
* * * * * /etc/check_ip_change.sh >/dev/null 2>&1

6.配置web设置界面

1.创建用于读写的脚本

vi /www/cgi-bin/read_file.cgi
vi /www/cgi-bin/write_file.cgi

read_file.cgi文件

{collapse-item label="read_file.cgi" open}

#!/bin/sh

echo "Content-type: text/plain"
echo ""

# 获取查询字符串中的file参数
FILE=$(echo "$QUERY_STRING" | sed -n 's/^.*file=\([^&]*\).*$/\1/p' | sed "s/%20/ /g")

# 将相对路径转换为绝对路径
case "$FILE" in
   ./etc/auto_login.sh)
       ABS_PATH="/etc/auto_login.sh"
       ;;
   ./tmp/auto_login.log)
       ABS_PATH="/tmp/auto_login.log"
       ;;
   *)
       echo "错误: 无权访问该文件"
       exit 1
       ;;
esac

# 改进的安全检查：只防止包含../的路径遍历，允许单个.
if echo "$FILE" | grep -q "\.\./"; then
   echo "错误: 无效的文件路径（包含路径遍历）"
   exit 1
fi

# 检查文件是否存在
if [ ! -f "$ABS_PATH" ]; then
   echo "错误: 文件不存在: $ABS_PATH"
   exit 1
fi

# 读取文件内容
cat "$ABS_PATH"

{/collapse-item}

write_file.cgi文件

{collapse-item label="write_file.cgi" open}

#!/bin/sh

echo "Content-type: text/plain"
echo ""

# 读取POST数据
read -r POST_DATA

# 解析POST数据，获取file和content参数
FILE_PARAM=$(echo "$POST_DATA" | sed 's/&.*//' | sed 's/file=//')
CONTENT_PARAM=$(echo "$POST_DATA" | sed 's/.*&//' | sed 's/content=//')

# 对URL编码进行解码
FILE=$(printf "%b" "$(echo "$FILE_PARAM" | sed 's/+/ /g; s/%/\\x/g')")
CONTENT=$(printf "%b" "$(echo "$CONTENT_PARAM" | sed 's/+/ /g; s/%/\\x/g')")

# 将相对路径转换为绝对路径
case "$FILE" in
   "./etc/auto_login.sh")
       ABS_PATH="/etc/auto_login.sh"
       ;;
   *)
       echo "错误: 只能保存到auto_login.sh文件"
       exit 1
       ;;
esac

# 安全检查：防止路径遍历攻击
if echo "$ABS_PATH" | grep -q "\.\."; then
   echo "错误: 无效的文件路径"
   exit 1
fi

# 只允许写入特定文件
if [ "$ABS_PATH" = "/etc/auto_login.sh" ]; then
   # 检查目录是否存在且可写
   if [ ! -w "$(dirname "$ABS_PATH")" ]; then
       echo "错误: 目录不可写: $(dirname "$ABS_PATH")"
       exit 1
   fi

   # 写入文件
   echo "$CONTENT" > "$ABS_PATH"

   # 检查是否成功写入
   if [ $? -eq 0 ]; then
       echo "文件保存成功"
   else
       echo "错误: 文件保存失败"
       exit 1
   fi
else
   echo "错误: 只能保存到auto_login.sh文件"
   exit 1
fi

{/collapse-item}
{collapse-item label="9月11更新write_file.cgi"}

#!/bin/sh

echo "Content-type: text/plain"
echo ""

# 读取POST数据
read -r POST_DATA

# 解析POST数据，获取file和content参数
FILE_PARAM=$(echo "$POST_DATA" | sed 's/&.*//' | sed 's/file=//')
CONTENT_PARAM=$(echo "$POST_DATA" | sed 's/.*&//' | sed 's/content=//')

# 对URL编码进行解码
FILE=$(printf "%b" "$(echo "$FILE_PARAM" | sed 's/+/ /g; s/%/\\x/g')")
CONTENT=$(printf "%b" "$(echo "$CONTENT_PARAM" | sed 's/+/ /g; s/%/\\x/g')")

# 将相对路径转换为绝对路径
case "$FILE" in
    "./etc/auto_login.sh")
        ABS_PATH="/etc/auto_login.sh"
        ;;
    *)
        echo "错误: 只能保存到auto_login.sh文件"
        exit 1
        ;;
esac

# 安全检查：防止路径遍历攻击
if echo "$ABS_PATH" | grep -q "\.\."; then
    echo "错误: 无效的文件路径"
    exit 1
fi

# 只允许写入特定文件
if [ "$ABS_PATH" = "/etc/auto_login.sh" ]; then
    # 检查目录是否存在且可写
    if [ ! -w "$(dirname "$ABS_PATH")" ]; then
        echo "错误: 目录不可写: $(dirname "$ABS_PATH")"
        exit 1
    fi

    # 写入文件
    echo "$CONTENT" > "$ABS_PATH"

    # 检查是否成功写入
    if [ $? -eq 0 ]; then
        echo "文件保存成功"

    #2025.9.11添加 保存后自动运行一次

        # 添加执行权限
        chmod +x "$ABS_PATH"

        # 延迟1秒后执行
        # sleep 1
        # 执行脚本并捕获输出
        OUTPUT=$($ABS_PATH 2>&1)
        echo "脚本执行结果: $OUTPUT"

    else
        echo "错误: 文件保存失败"
        exit 1
    fi
else
    echo "错误: 只能保存到auto_login.sh文件"
    exit 1
fi

{/collapse-item}

2.创建网页文件

先创建目录和文件

mkdir -p www/webconfig/
vi /www/webconfig/index.html

index.html文件

{collapse-item label="index.html" open}

<!DOCTYPE html>
<html lang="zh-CN">
<head>
   <meta charset="UTF-8">
   <meta name="viewport" content="width=device-width, initial-scale=1.0">
   <title>OpenWrt 自动登录配置</title>
   <style>
       * {
           box-sizing: border-box;
           margin: 0;
           padding: 0;
       }

       body {
           font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
           line-height: 1.6;
           color: #333;
           background-color: #f5f5f5;
           padding: 20px;
           max-width: 1200px;
           margin: 0 auto;
       }

       header {
           background-color: #2c3e50;
           color: white;
           padding: 1rem;
           border-radius: 5px;
           margin-bottom: 20px;
           text-align: center;
       }

       h1 {
           font-size: 1.8rem;
           margin-bottom: 0.5rem;
       }

       .description {
           font-size: 1rem;
           opacity: 0.9;
       }

       .container {
           display: flex;
           flex-wrap: wrap;
           gap: 20px;
       }

       .panel {
           flex: 1;
           min-width: 300px;
           background: white;
           border-radius: 5px;
           box-shadow: 0 2px 10px rgba(0, 0, 0, 0.1);
           padding: 20px;
       }

       .panel h2 {
           margin-bottom: 15px;
           padding-bottom: 10px;
           border-bottom: 2px solid #eaeaea;
           color: #2c3e50;
       }

       .editor {
           width: 100%;
           min-height: 300px;
           font-family: monospace;
           padding: 10px;
           border: 1px solid #ddd;
           border-radius: 4px;
           resize: vertical;
       }

       .log-view {
           width: 100%;
           min-height: 300px;
           max-height: 500px;
           overflow-y: auto;
           font-family: monospace;
           padding: 10px;
           border: 1px solid #ddd;
           border-radius: 4px;
           background-color: #f8f8f8;
           white-space: pre-wrap;
       }

       .buttons {
           margin-top: 15px;
           display: flex;
           gap: 10px;
       }

       button {
           padding: 8px 16px;
           background-color: #3498db;
           color: white;
           border: none;
           border-radius: 4px;
           cursor: pointer;
           font-weight: 500;
           transition: background-color 0.2s;
       }

       button:hover {
           background-color: #2980b9;
       }

       button.save {
           background-color: #27ae60;
       }

       button.save:hover {
           background-color: #219653;
       }

       button.refresh {
           background-color: #95a5a6;
       }

       button.refresh:hover {
           background-color: #7f8c8d;
       }

       .status {
           margin-top: 10px;
           padding: 8px;
           border-radius: 4px;
           display: none;
       }

       .status.success {
           background-color: #d4edda;
           color: #155724;
           border: 1px solid #c3e6cb;
           display: block;
       }

       .status.error {
           background-color: #f8d7da;
           color: #721c24;
           border: 1px solid #f5c6cb;
           display: block;
       }

       .loading {
           color: #7f8c8d;
           font-style: italic;
       }

       @media (max-width: 768px) {
           .container {
               flex-direction: column;
           }
       }
   </style>
</head>
<body>
   <header>
       <h1>OpenWrt 自动登录配置</h1>
       <p class="description">编辑自动登录脚本并查看运行日志</p>
   </header>

   <div class="container">
       <div class="panel">
           <h2>自动登录脚本 (./etc/auto_login.sh)</h2>
           <textarea id="editor" class="editor" placeholder="加载中..."></textarea>
           <div class="buttons">
               <button id="saveBtn" class="save">保存更改</button>
               <button id="reloadBtn" class="refresh">重新加载</button>
           </div>
           <div id="editorStatus" class="status"></div>
       </div>

       <div class="panel">
           <h2>运行日志 (./tmp/auto_login.log)</h2>
           <pre id="logView" class="log-view">加载日志内容...</pre>
           <div class="buttons">
               <button id="refreshLogBtn" class="refresh">刷新日志</button>
           </div>
           <div id="logStatus" class="status"></div>
       </div>
   </div>

   <script>
       document.addEventListener('DOMContentLoaded', function() {
           const editor = document.getElementById('editor');
           const logView = document.getElementById('logView');
           const saveBtn = document.getElementById('saveBtn');
           const reloadBtn = document.getElementById('reloadBtn');
           const refreshLogBtn = document.getElementById('refreshLogBtn');
           const editorStatus = document.getElementById('editorStatus');
           const logStatus = document.getElementById('logStatus');

           // 加载脚本内容
           function loadScript() {
               editor.classList.add('loading');
               editor.value = '加载中...';

               fetch('/cgi-bin/read_file.cgi?file=./etc/auto_login.sh')
                   .then(response => {
                       if (!response.ok) {
                           throw new Error('无法读取文件');
                       }
                       return response.text();
                   })
                   .then(data => {
                       editor.value = data;
                       editor.classList.remove('loading');
                       showStatus(editorStatus, '脚本加载成功', 'success');
                   })
                   .catch(error => {
                       editor.value = '';
                       showStatus(editorStatus, '错误: ' + error.message, 'error');
                       editor.classList.remove('loading');
                   });
           }

           // 加载日志内容
           function loadLog() {
               logView.textContent = '加载中...';
               logView.classList.add('loading');

               fetch('/cgi-bin/read_file.cgi?file=./tmp/auto_login.log')
                   .then(response => {
                       if (!response.ok) {
                           throw new Error('无法读取日志文件');
                       }
                       return response.text();
                   })
                   .then(data => {
                       logView.textContent = data || '日志文件为空';
                       logView.classList.remove('loading');
                       showStatus(logStatus, '日志加载成功', 'success');
                   })
                   .catch(error => {
                       logView.textContent = '加载失败: ' + error.message;
                       showStatus(logStatus, '错误: ' + error.message, 'error');
                       logView.classList.remove('loading');
                   });
           }

           // 保存脚本内容
           function saveScript() {
               const content = editor.value;

               fetch('/cgi-bin/write_file.cgi', {
                   method: 'POST',
                   headers: {
                       'Content-Type': 'application/x-www-form-urlencoded',
                   },
                   body: `file=./etc/auto_login.sh&content=${encodeURIComponent(content)}`
               })
               .then(response => {
                   if (!response.ok) {
                       throw new Error('保存失败');
                   }
                   return response.text();
               })
               .then(data => {
                   showStatus(editorStatus, '保存成功', 'success');
               })
               .catch(error => {
                   showStatus(editorStatus, '错误: ' + error.message, 'error');
               });
           }

           // 显示状态消息
           function showStatus(element, message, type) {
               element.textContent = message;
               element.className = 'status ' + type;

               // 3秒后隐藏状态消息
               setTimeout(() => {
                   element.className = 'status';
                   element.textContent = '';
               }, 3000);
           }

           // 绑定按钮事件
           saveBtn.addEventListener('click', saveScript);
           reloadBtn.addEventListener('click', loadScript);
           refreshLogBtn.addEventListener('click', loadLog);

           // 初始加载内容
           loadScript();
           loadLog();
       });
   </script>
</body>
</html>

{/collapse-item}
{collapse-item label="9月11更新index.html"}

<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>OpenWrt 自动登录配置</title>
    <style>
        * {
            box-sizing: border-box;
            margin: 0;
            padding: 0;
        }

        body {
            font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
            line-height: 1.6;
            color: #333;
            background-color: #f5f5f5;
            padding: 20px;
            max-width: 1200px;
            margin: 0 auto;
        }

        header {
            background-color: #2c3e50;
            color: white;
            padding: 1rem;
            border-radius: 5px;
            margin-bottom: 20px;
            text-align: center;
        }

        h1 {
            font-size: 1.8rem;
            margin-bottom: 0.5rem;
        }

        .description {
            font-size: 1rem;
            opacity: 0.9;
        }

        .container {
            display: flex;
            flex-wrap: wrap;
            gap: 20px;
        }

        .panel {
            flex: 1;
            min-width: 300px;
            background: white;
            border-radius: 5px;
            box-shadow: 0 2px 10px rgba(0, 0, 0, 0.1);
            padding: 20px;
        }

        .panel h2 {
            margin-bottom: 15px;
            padding-bottom: 10px;
            border-bottom: 2px solid #eaeaea;
            color: #2c3e50;
        }

        .editor {
            width: 100%;
            min-height: 300px;
            font-family: monospace;
            padding: 10px;
            border: 1px solid #ddd;
            border-radius: 4px;
            resize: vertical;
        }

        .log-view {
            width: 100%;
            min-height: 300px;
            max-height: 500px;
            overflow-y: auto;
            font-family: monospace;
            padding: 10px;
            border: 1px solid #ddd;
            border-radius: 4px;
            background-color: #f8f8f8;
            white-space: pre-wrap;
        }

        .buttons {
            margin-top: 15px;
            display: flex;
            gap: 10px;
            flex-wrap: wrap;
        }

        button {
            padding: 8px 16px;
            background-color: #3498db;
            color: white;
            border: none;
            border-radius: 4px;
            cursor: pointer;
            font-weight: 500;
            transition: background-color 0.2s;
        }

        button:hover {
            background-color: #2980b9;
        }

        button.save {
            background-color: #27ae60;
        }

        button.save:hover {
            background-color: #219653;
        }

        button.refresh {
            background-color: #95a5a6;
        }

        button.refresh:hover {
            background-color: #7f8c8d;
        }

        button.download {
            background-color: #9b59b6;
        }

        button.download:hover {
            background-color: #8e44ad;
        }

        .status {
            margin-top: 10px;
            padding: 8px;
            border-radius: 4px;
            display: none;
        }

        .status.success {
            background-color: #d4edda;
            color: #155724;
            border: 1px solid #c3e6cb;
            display: block;
        }

        .status.error {
            background-color: #f8d7da;
            color: #721c24;
            border: 1px solid #f5c6cb;
            display: block;
        }

        .loading {
            color: #7f8c8d;
            font-style: italic;
        }

        @media (max-width: 768px) {
            .container {
                flex-direction: column;
            }

            .buttons {
                flex-direction: column;
            }

            button {
                width: 100%;
            }
        }
    </style>
</head>
<body>
    <header>
        <h1>OpenWrt 自动登录配置</h1>
        <p class="description">编辑自动登录脚本并查看运行日志</p>
    </header>

    <div class="container">
        <div class="panel">
            <h2>自动登录脚本 (./etc/auto_login.sh)</h2>
            <textarea id="editor" class="editor" placeholder="加载中..."></textarea>
            <div class="buttons">
                <button id="saveBtn" class="save">保存更改</button>
                <button id="reloadBtn" class="refresh">重新加载</button>
            </div>
            <div id="editorStatus" class="status"></div>
        </div>

        <div class="panel">
            <h2>运行日志 (./tmp/auto_login.log)</h2>
            <pre id="logView" class="log-view">加载日志内容...</pre>
            <div class="buttons">
                <button id="refreshLogBtn" class="refresh">刷新日志</button>
                <button id="downloadLogBtn" class="download">下载日志</button>
            </div>
            <div id="logStatus" class="status"></div>
        </div>
    </div>

    <script>
        document.addEventListener('DOMContentLoaded', function() {
            const editor = document.getElementById('editor');
            const logView = document.getElementById('logView');
            const saveBtn = document.getElementById('saveBtn');
            const reloadBtn = document.getElementById('reloadBtn');
            const refreshLogBtn = document.getElementById('refreshLogBtn');
            const downloadLogBtn = document.getElementById('downloadLogBtn');
            const editorStatus = document.getElementById('editorStatus');
            const logStatus = document.getElementById('logStatus');

            // 加载脚本内容
            function loadScript() {
                editor.classList.add('loading');
                editor.value = '加载中...';

                fetch('/cgi-bin/read_file.cgi?file=./etc/auto_login.sh')
                    .then(response => {
                        if (!response.ok) {
                            throw new Error('无法读取文件');
                        }
                        return response.text();
                    })
                    .then(data => {
                        editor.value = data;
                        editor.classList.remove('loading');
                        showStatus(editorStatus, '脚本加载成功', 'success');
                    })
                    .catch(error => {
                        editor.value = '';
                        showStatus(editorStatus, '错误: ' + error.message, 'error');
                        editor.classList.remove('loading');
                    });
            }

            // 加载日志内容
            function loadLog() {
                logView.textContent = '加载中...';
                logView.classList.add('loading');

                fetch('/cgi-bin/read_file.cgi?file=./tmp/auto_login.log')
                    .then(response => {
                        if (!response.ok) {
                            throw new Error('无法读取日志文件');
                        }
                        return response.text();
                    })
                    .then(data => {
                        logView.textContent = data || '日志文件为空';
                        logView.classList.remove('loading');
                        showStatus(logStatus, '日志加载成功', 'success');
                    })
                    .catch(error => {
                        logView.textContent = '加载失败: ' + error.message;
                        showStatus(logStatus, '错误: ' + error.message, 'error');
                        logView.classList.remove('loading');
                    });
            }

            // 保存脚本内容
            function saveScript() {
                const content = editor.value;

                fetch('/cgi-bin/write_file.cgi', {
                    method: 'POST',
                    headers: {
                        'Content-Type': 'application/x-www-form-urlencoded',
                    },
                    body: `file=./etc/auto_login.sh&content=${encodeURIComponent(content)}`
                })
                .then(response => {
                    if (!response.ok) {
                        throw new Error('保存失败');
                    }
                    return response.text();
                })
                .then(data => {
                    showStatus(editorStatus, '保存成功', 'success');
                })
                .catch(error => {
                    showStatus(editorStatus, '错误: ' + error.message, 'error');
                });
            }

            // 下载日志功能
            function downloadLog() {
                const logContent = logView.textContent;
                if (!logContent || logContent === '加载中...' || logContent === '加载日志内容...') {
                    showStatus(logStatus, '没有可下载的日志内容', 'error');
                    return;
                }

                try {
                    // 创建Blob对象
                    const blob = new Blob([logContent], { type: 'text/plain' });
                    const url = URL.createObjectURL(blob);

                    // 创建下载链接
                    const a = document.createElement('a');
                    a.href = url;
                    a.download = 'auto_login.log';
                    document.body.appendChild(a);
                    a.click();

                    // 清理
                    setTimeout(() => {
                        document.body.removeChild(a);
                        URL.revokeObjectURL(url);
                        showStatus(logStatus, '日志下载成功', 'success');
                    }, 100);
                } catch (error) {
                    showStatus(logStatus, '下载失败: ' + error.message, 'error');
                }
            }

            // 显示状态消息
            function showStatus(element, message, type) {
                element.textContent = message;
                element.className = 'status ' + type;

                // 3秒后隐藏状态消息
                setTimeout(() => {
                    element.className = 'status';
                    element.textContent = '';
                }, 3000);
            }

            // 绑定按钮事件
            saveBtn.addEventListener('click', saveScript);
            reloadBtn.addEventListener('click', loadScript);
            refreshLogBtn.addEventListener('click', loadLog);
            downloadLogBtn.addEventListener('click', downloadLog);

            // 初始加载内容
            loadScript();
            loadLog();
        });
    </script>
</body>
</html>

{/collapse-item}

3.设置权限

chmod +x /www/cgi-bin/read_file.cgi /www/cgi-bin/write_file.cgi

4.管理地址

管理地址

所有工具和包

小米R4A V2刷入openwrt 实现校园网自动认证

一、路由器刷入openwrt系统

1.开Telnet

2.连接路由器，备份固件

3.刷入breed

4.刷入openwrt

5.进入系统

二、无网线接口配置方法

三、获取认证接口构建认证请求

1.登录接口

2.注销接口

3.构造认证请求文件

4.上传到路由器

5.IP监测

6.配置web设置界面

评论 (0)

小米R4A V2刷入openwrt 实现校园网自动认证

一、路由器刷入openwrt系统

1.开Telnet

2.连接路由器，备份固件

3.刷入breed

4.刷入openwrt

5.进入系统

二、无网线接口配置方法

三、获取认证接口 构建认证请求

1.登录接口

2.注销接口

3.构造认证请求文件

4.上传到路由器

5.IP监测

6.配置web设置界面

评论 (0)

三、获取认证接口构建认证请求
